Vertical
Packaging Machinery
The range of vertical packaging machines PFM is specifically designed to meet any need of flexible packaging for food and non-food applications.
Vertical form fill seal (VFFS) sealing systems: technical differences and selection criteria
PFM and MBP vertical form fill seal machines (VFFS) use distinct sealing systems: intermittent motion, continuous motion and Long Dwell / Box Motion, each engineered for specific production requirements: product nature (granular, powder, fragile or liquid), bag format and required output.
Intermittent motion sealing unit
Precision and control with the film at rest
The film advances in steps and sealing takes place while the film is stationary: the jaws have all the contact time they need, and every seal is controlled and precise.
It is the most suitable choice when precision prevails over raw speed: auger-dosed powders, accurate portioning, complex formats such as block bottom, Steelo Bag and doy-style, and production runs with frequent format changes.
Continuous motion sealing unit
Maximum productivity for pillowbag packs without stopping the film
When maximum productivity is the goal, the film never stops: the jaws seal as it advances, with a rotary motion, with no stops or dead time.
This is the setup for high-volume production (snacks, chips, confectionery, pasta…) where the packaging machine operates in line with MBP multihead weighers and volumetric or auger dosers.
Vertical Long Dwell and Box Motion sealing unit
Hermetic performance even at high speed
In vertical packaging too, the most demanding films require longer contact time. PFM’s patented Long Dwell rotary head provides it without giving up continuous motion, ensuring airtight seals on barrier films, recyclable mono-materials and paper-based films, including MAP applications.
For structured bags (block bottom, Steelo Bag, doy-style) the box-motion unit applies prolonged, even pressure while following the film’s travel: strong seals and well-defined corners that ensure the bag stands perfectly on the shelf.
VFFS Range
A full range of models to cover all the needs for an extremely fast flexible packaging.
-
Intermittent Motion

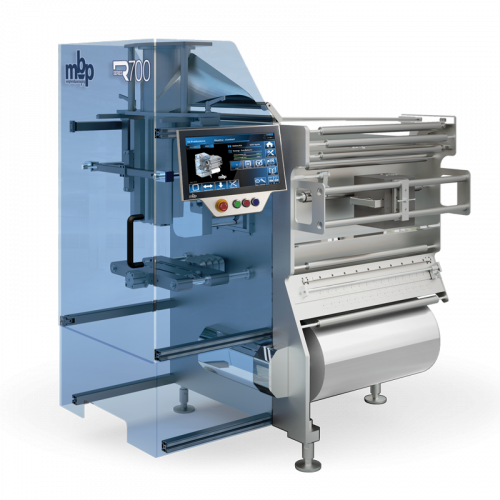

R 700/800
The R700 is a vertical form fill and seal packaging machine for the production of bags sealed on three sides, such as pillow-bags, as well as block bottom bags and/or block bottom bags with 4 corner seals.
-
Intermittent Motion

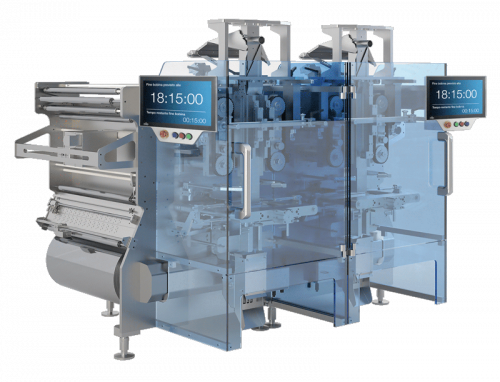

R 700/800 Twin
The R700 TWIN is a vertical form fill and seal packaging machine for the production of bags sealed on three sides, such as pillow-bags, as well as block bottom bags and/or block bottom bags with 4 corner seals.
-
Intermittent Motion

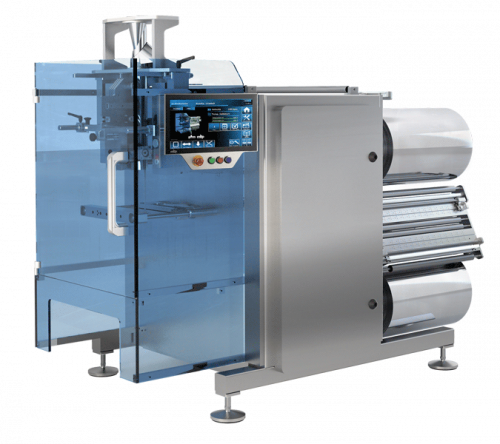

RS 700/800
The RS700 is an intermittent motion machine and available with 1 or 2 reel-holder shafts for pillow-bag and Steelo-bag.
-
Box Motion

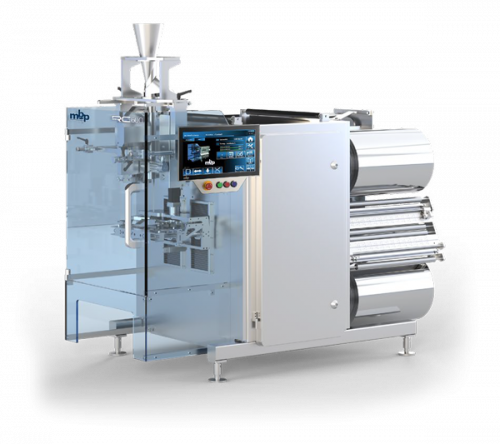

RC 700/800
RC700 is a vertical form fill and seal packaging machine for the production of bags such as pillow-bag, square bottom and Steelo-bag (squared bottom with 4 side seals).
-
Intermittent Motion

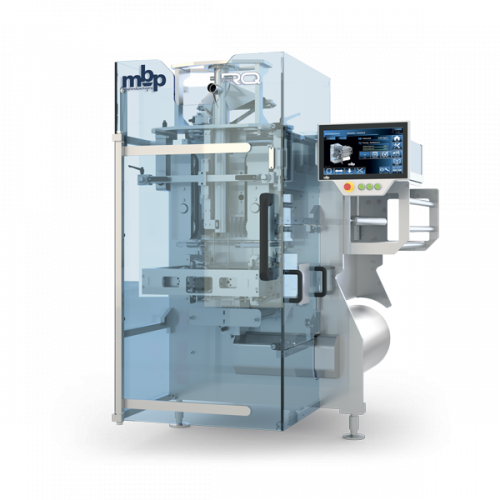

RQ 700/800
Intermittent, Single-reel Vertical Form Fill Seal with removable sealing unit.
-
Intermittent Motion
RQ 700 Twin
RQ700 contains all the features of R-Series plus the benefits deriving from the QRM POWER FEEDBACK interchangeable, removable, rotatable sealing unit.
-
Intermittent Motion

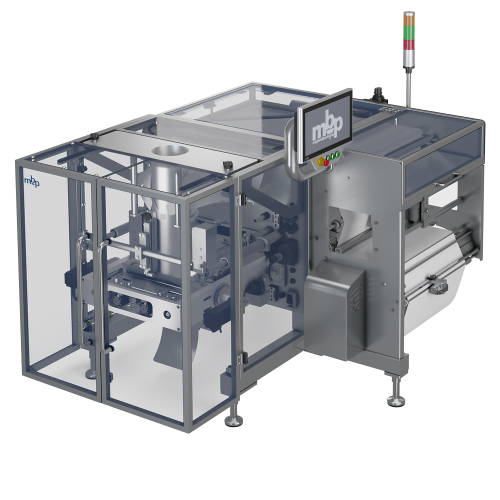

RQ 550 Nano
RQ550 Nano is an intermittent motion VFFS machine, lowered version, to produce pillow-bags, square-bottom bags, Steelo-bags and Doy-Style bags.
-
Continuous Motion

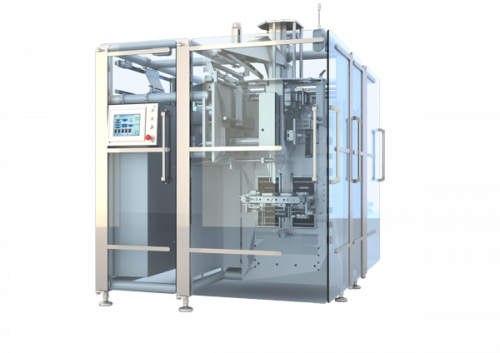

Solaris Evo
The Solaris EVO is th high speed continuous motion vertical form fill and seal wrapper that produces 3-side sealed pillow-bags, block-bottom and Steelo- bags, doy-style bags also with zip and eurohole.
-
Intermittent Motion

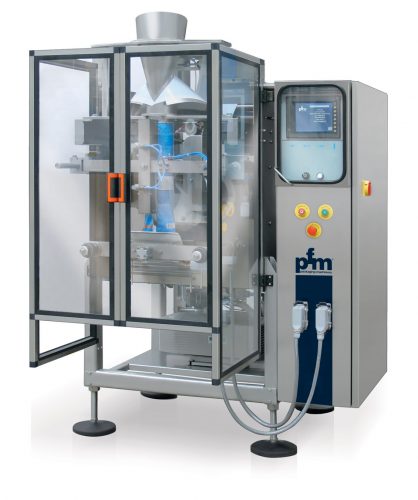

Zenith
The PFM ZENITH is a vertical form fill seal machine designed for granular products (chips/crisps, candies and many others), combining dosing systems and wrapping into a stable and easy-to-manage process.
-
Intermittent Motion

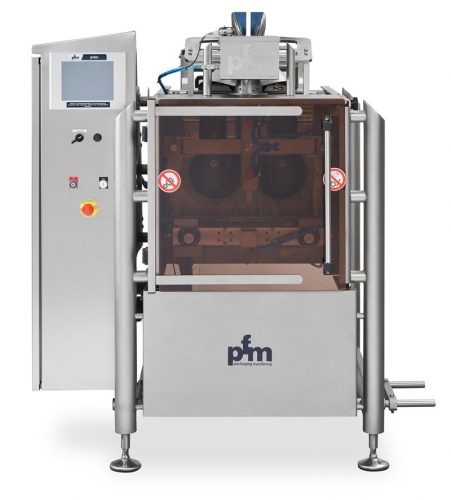

Polar
The PFM POLAR is a vertical form fill seal machine specifically designed for dairy products and high-hygiene environments. It produces pillow packs and packs with clip from a reel of heat-sealable wrapping material.
-
Continuous Motion

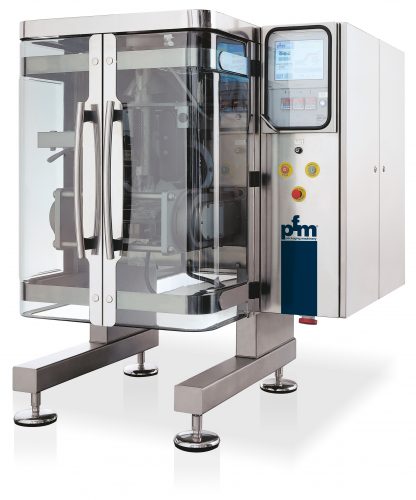

Comet
The PFM COMET is a continuous motion vertical form fill seal machine designed for high-speed wrapping of granular products with hermetic sealing performance: chips/crisps, candies and many others combined with multihead weighers and volumetric dosing systems.
-
Continuous Motion

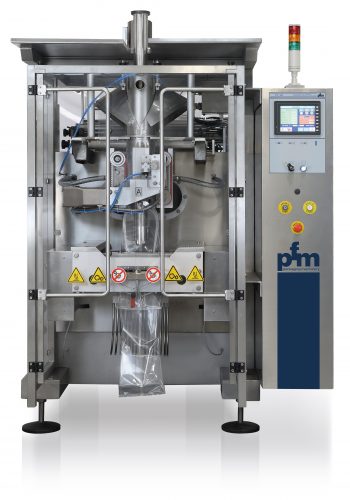

PV320 High Speed
The PFM PV320 High Speed is a continuous motion vertical form fill seal machine designed for high-speed wrapping og granular products with hermetic sealing performance.
-
Intermittent Motion

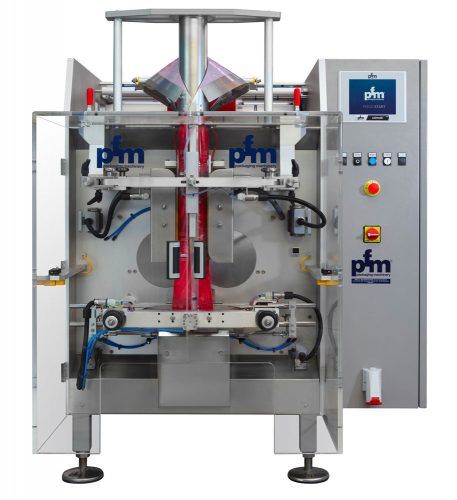

Azimuth EVO
The PFM AZIMUTH EVO is a full-servo vertical form fill seal wrapper that produces pillow pack bags and Steelo Bags (block bottom with 4 side sealed corners) starting from a flat reel of heat-sealable packaging material.
-
Intermittent Motion

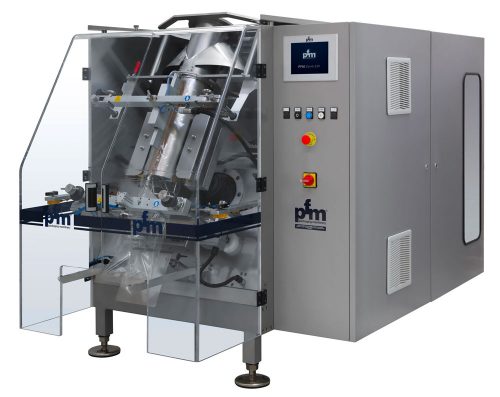

Azimuth EVO Inclined Version
The PFM AZIMUTH EVO Inclined is a full-servo vertical form fill seal wrapper that produces pillow pack bags and Steelo Bags (block bottom with 4 side sealed corners) it is designed for fragile and delicate products requiring controlled handling during vertical packaging.
-
Intermittent Motion

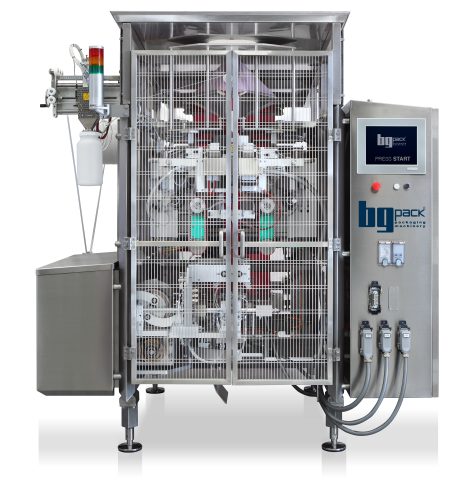

Vetta
The PFM VETTA is a vertical form fill seal system designed to produce a wide range of packaging formats within a single machine architecture. Vetta can offer up to 30 different bag styles, from standard vertical form fill and seal using clear or printed film, to stand-up oval bottom bags with sombrero hole punch.
Stand-Up and Pillow Bag
Packaging Solutions
HFFS and VFFS systems for producing Doypack and stand-up pouches, square bottom, as well as pillow bags. The PFM range includes D-Series, F-Series, R-Series VFFS machines, multihead weighers, and volumetric or auger dosing systems.
Flow Wrap
Packaging Solutions
Horizontal flow-wrappers and integrated lines with robotic loading. These systems maintain accurate product handling and controlled movement to reduce waste and support high-quality sealing.
