Continuous motion, redefined for maximum packaging versatility.
The PFM SOLARIS EVO represents an evolution in vertical packaging where continuous motion is combined with multi-format flexibility. The machine eliminates intermittent dynamics, increasing production speed while maintaining precise control over film handling and sealing. It significantly reduces changeover time, allowing fast change between packaging formats without complex mechanical adjustments. At the core of the system is the two-way film transport concept: with film coming from Side A, the machine produces pillow bags, Steelo bags and block bottom bags; with film coming from Side B, it produces 3-side and 4-side sealed packs, as well as Doy-style bags with or without zip and eurohole. This architecture allows multiple packaging styles without rotating the box motion sealing unit, simplifying operations and improving efficiency while ensuring better pack aesthetics and consistency.
Increased production speed
Continuous motion eliminates stop-start dynamics, increasing output while maintaining precise control over sealing performance.
Reduced changeover time
Quick format change without complex adjustments significantly reduce downtime and improve overall production efficiency.
Aesthetically nicer bag
Optimised film handling and sealing ensure cleaner, more consistent and visually appealing packaging results.

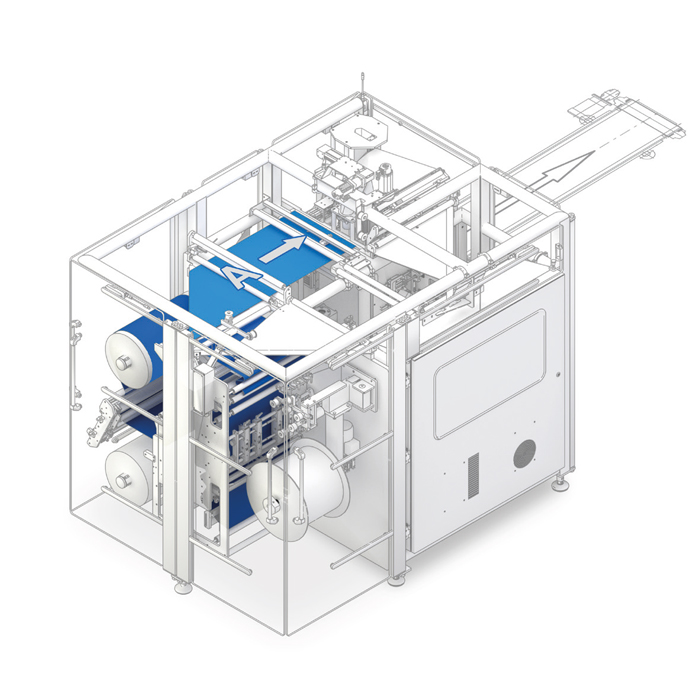

TWO-WAY FILM CONCEPT
Film coming from side A
Pillow Bag
Steelo-Bag
Block-bottom Bag
With film coming from side A SOLARIS EVO produces pillow bags, Steelo-Bags and Block Bottom bags.
Film coming from side B
Doy Style Bag
3-side seals and Zip
4-side seals pillow-bags
With film coming from side B SOLARIS EVO produces 3-side and 4-side sealed pillow-bags with or without zip and eurohole, Doy-style bags and Doy-style with zip and eurohole.
Bag Formats
Discover our 7 packs for thousands of products
Pillow Bag
Up to 150 bags/min (cutting pitch up to 150 mm)
W: 80 – 300 mm
L: 80 – 400 mm
Gusseted Bag
Up to 120 bags/min
W: 80 – 300 mm
L: 60 – 400 mm
Block-bottom bag
Up to 100 bags/min
W: 80 – 280 mm
D: 60 – 140 mm
L: 80 – 400 mm
Steelo-Bag
Up to 100 bags/min
W: 80 – 280 mm
D: 60 – 140 mm
L: 80 – 400 mm
3-sided and 3-sided Zip
Up to 100 bags/min with cross seal
W: 80 – 300 mm
L: 80 – 400 mm
Bag feed direction rotated 90°
4-side sealed pillow-bags
Up to 100 bags/min
W: 80 – 300 mm
L: 80 – 400 mm
Bag feed direction rotated 90°
Doy-Style and Doy-Style with Zip
Up to 100 bags/min with cross seal
W: 60 – 400 mm
L: 80 – 250 mm
Bag feed direction rotated 90°
18+ Sectors.
One Engineering Principle.
The Sectors (Applications) section shows the different industries and product categories that can be handled with this machine. The available applications cover a wide range of formats and production needs, ensuring flexibility across multiple sectors.
PFM analyzes each sector and translates its characteristics into dedicated packaging applications, delivering efficient and reliable solutions for every product type.
Related Packs
The Related Packs section shows the different packs that can be produced with this machine. The available solutions cover a wide range of formats and applications, providing flexibility to meet diverse production needs.
Block Bottom Bags
Block bottom bag produced by a Vertical Form Fill and Seal machine, featuring a rectangular base and side gussets for enhanced shelf stability and efficient storage.
Flex-Can
Flex-Can flexible packaging designed to mimic a rigid can, featuring a cylindrical shape, flat top, and a self-standing bottom or optional base.
Vertical Gusseted Bags
Vertical gusseted pillow bags with side gussets on both sides, designed for flexibility and versatility, offering reliable protection and improved presentation for various products.
Vertical Pillow Bags
Three-seal vertical pillow bag used to package a wide range of products, including food, cosmetics, apparel, and electronics, offering a practical and widely adopted packaging solution.
Steelo Bag
Steelo Bag flexible packaging combining a stand-up pouch and side gusseted bag, featuring a flat bottom and four side seals, with optional reclosable systems and opening aids.
Three Side Seal Bags
Three side seal packaging commonly used for sliced fresh meat and cheese. Can be opened and reclosed, making it suitable for products requiring frequent access or portioning.
