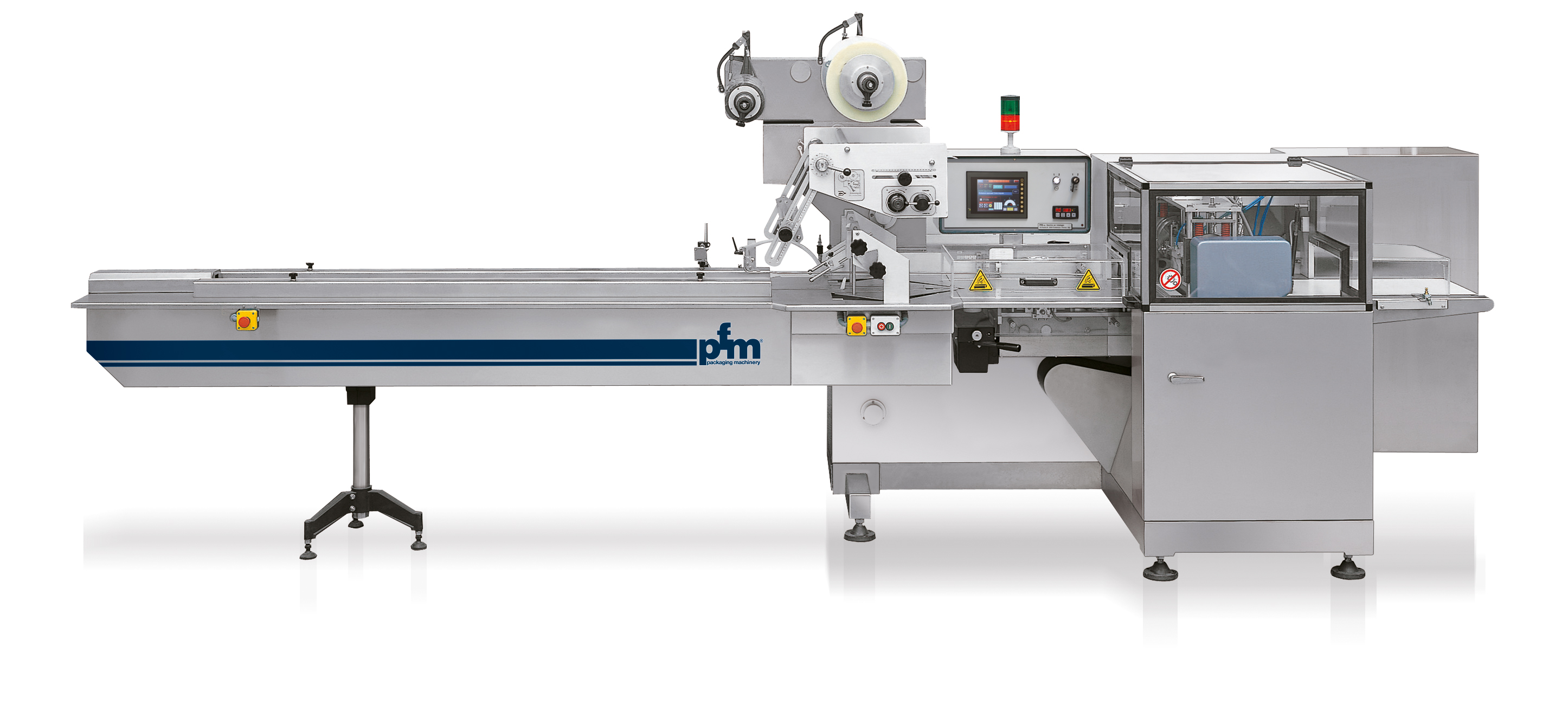

PFM Mistral BA

A flow-wrap packaging machine which produces packs sealed on three sides from a roll of heat-sealable packaging film, the Mistral is designed for high-speed MAP packaging.

Designed to package

Mistral BA is a Horizontal packaging machine designed in particular for the automatic packaging of these products:

Benefits

  • Air tightness: Guaranteed hermetic sealings with high production speed.
  • Construction: Cantilevered construction: the mechanical and electronic components are housed at the back of the wrapping machine in a separate, protected enclosures. The front of the machine is clear and can easily be cleaned. Product debris does not come into contact with any mechanical or electrical parts.

Technical Features

  • 2 mt. Infeed Conveyor with interchangeable pushers.
  • Adjustable Forming Box to allow pack height and width to be easily adjusted to suit varying product sizes.
  • Double self-centring reel holder shaft with brakes.
  • Film fower feed roll.
  • Photocell for print registered packaging material.
  • Three sets of fin seal rollers with auto opening of the sealing set.

Optional

  • Date / Bar Code printer.
  • Automatic Reel Splicer.
  • Trimming device to remove excess material from the longitudinal fin seal.
  • Mechanical gusset tucking.
  • Pneumatic presser to remove excess air from packs.
  • Retractable discharge conveyor to reject faulty packs.
  • Gas flushing systems and residual oxygen monitoring system for modified atmosphere packaging.
  • Various types of feeding systems.

Available Versions

  • With reel feed from above (Conventional).
  • With reel feed from below (BB Inverted).
  • Long Dwell HS version
  • Polyethylene version.
  • BDF version (for use with shrink wrapping materials where high barrier properties are required).

Contact your PFM local sales manager

For technical details and price inquiries, contact us and we will assist you.
