MBP R-Series
Engineered for efficiency
The R-Series integrates simplified mechanics, reduced roller count and advanced software control to optimise film handling and sealing performance. The result is a machine capable of reaching high speeds while maintaining stability, repeatability and pack quality.
More Efficiency in Less Space
The R700 is a very compact and innovative machine that allows very quick format changes. It features unique technical solutions which include the film reel holder shaft positioned on the side of the machine body instead of the traditional rear position; the introduction of the self-centring film tracking unit positioned on the top of the frame that guides the film towards the forming tube and the drastic reduction in the number of idle film rollers that transfer less inertial energy to the film allowing for greater acceleration.
High productivity in a compact footprint
Delivers high output while occupying minimal space, optimising production layout and efficiency.
Flexible configuration for increased output
Available in Twin version to double productivity using a single multihead weigher.
Advanced film control without mechanical stress
Electronic tension management eliminates inertia, improving sealing quality and packaging consistency.
The operating principle:
from continuous to intermittent motion.
The operating principle of the machine is based on a motor driven reel-holder shaft that rotates constantly and the film pulling and sealing unit that moves intermittently. An electronic compensating dancing roller transforms the constant movement of the film arriving from the reel shaft into an alternating movement towards the sealing units.
Thanks to this principle, the use of the mechanical reel brake is not required anymore and the overall machine dynamics is very smooth thanks to the film stretch management that can be programmed by the software.
The first 6 film idle rollers rotate constantly and only 2 rollers move intermittently. As a direct consequence, the inertial energy is not transferred to the film and it is possible to increase the acceleration of the film and / or the sealing time, which greatly benefits productivity and the aesthetics of the pack
Explore the R-Series lineup.
A full range of VFFS Machines to cover all the needs for an extremely fast flexible packaging.
-
R 700/800
The R700 is a vertical form fill and seal packaging machine for the production of bags sealed on three sides, such as pillow-bags, as well as block bottom bags and/or block bottom bags with 4 corner seals.
-
R 700/800 Twin
The R700 TWIN is a vertical form fill and seal packaging machine for the production of bags sealed on three sides, such as pillow-bags, as well as block bottom bags and/or block bottom bags with 4 corner seals.
-

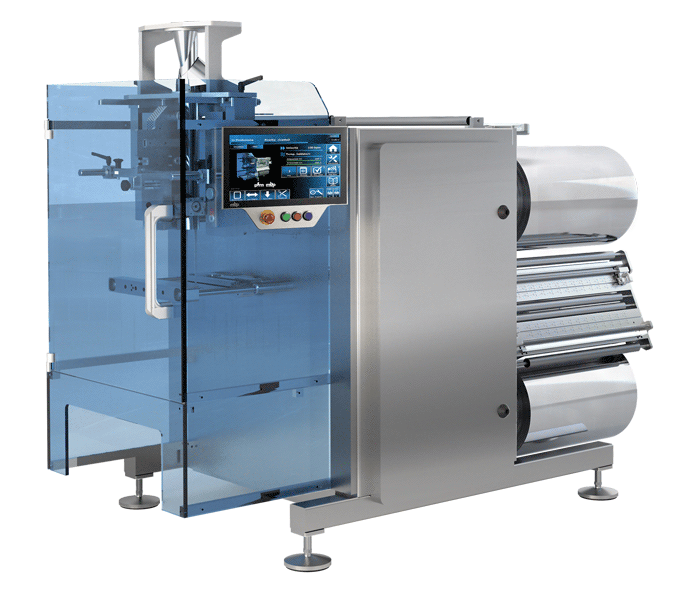

RS 700/800
The RS700 is an intermittent motion machine and available with 1 or 2 reel-holder shafts for pillow-bag and Steelo-bag.
-
RC 700/800
RC700 is a vertical form fill and seal packaging machine for the production of bags such as pillow-bag, square bottom and Steelo-bag (squared bottom with 4 side seals).
-
RQ 700/800
Intermittent, Single-reel Vertical Form Fill Seal with removable sealing unit.
-
RQ 700 Twin
RQ700 contains all the features of R-Series plus the benefits deriving from the QRM POWER FEEDBACK interchangeable, removable, rotatable sealing unit.
-

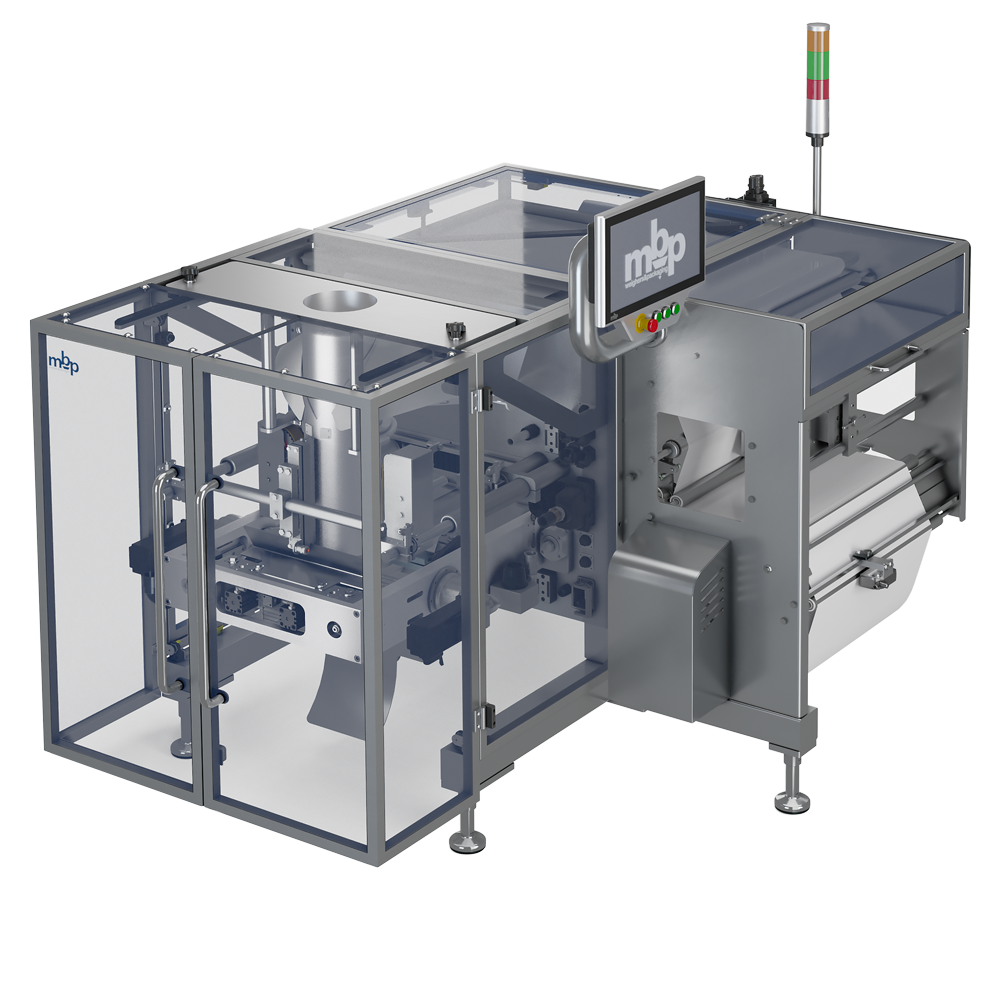

RQ 550 Nano
RQ550 Nano is an intermittent motion VFFS machine, lowered version, to produce pillow-bags, square-bottom bags, Steelo-bags and Doy-Style bags.
-
RX 800
RX800 is the entry-level VFFS machine of the MBP R range, representing the synthesis of operational simplicity, high productivity and very low running costs.
