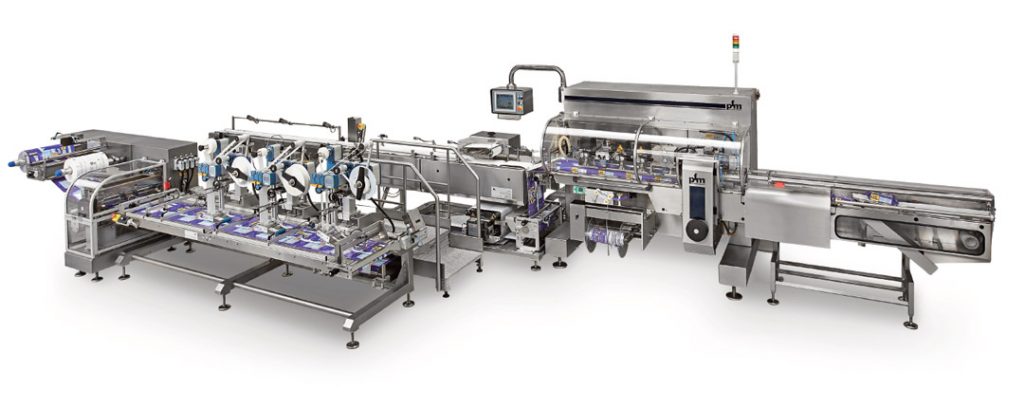

Automatic Packaging Line with PFM Scirocco BB Wrapper to produce up to 160 packs of Wet Wipes/min.
Products: wet wipes for personal hygiene care.
Packaging: flow pack with double label (re-closing label and tamper evident).
Production rate: 160 packs per minute.
Advantages: one of the fastest lines in the world.
Line composed of:
Film preparation unit and PFM Scirocco High Speed horizontal packaging
machine with automatic in-line feeder equipped with calibrating conveyor.
The film preparation unit is arranged parallel to the packaging machine’s
longitudinal axis; it can also be installed at 90° (to the front or rear),
and is made up of:
- Double reel holder shaft complete with automatic reel splicer.
- Servo driven film die cut unit to produce the pack opening.
- 3 labelling machines: two units, one of which in stand-by, for the application of the package re-sealing label, the third for the application of the tamper evident seal label.
- Longitudinal fin seal unit composed of: three sets of separate tiltable pulling wheels, one set of preheating bars, trimming device with mechanical trimm rewind and cold pulling wheels.
- Siemens or Rockwell (Allen Bradley) electronic components.
